INTECH Infrared Touch Panel

  • Infrared 20 points touch
  • Dual OS: Windows + Android OS
  • 4K UHD screen
  • 12mm ultra-slim frame
  • Adsorptive magnetic pen slot special for 2048 pressure sensitive pen
  • Wireless transmission, free share by QR code
Features Specifications Dimensions Video
  • Infrared 20 points touch, support multi writing simultaneously and gesture recognition
  • Dual OS: Windows + Android OS with various configurations
  • 4K UHD screen with high quality images

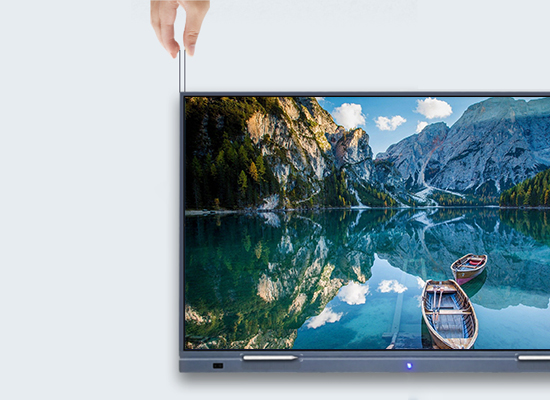

  • 12mm ultra-slim frame makes you unbelievable

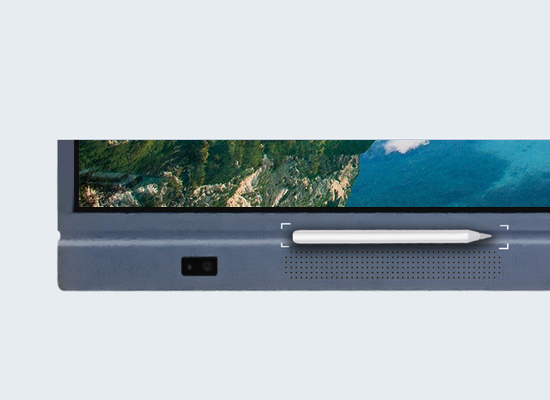

  • Adsorptive magnetic pen slot special for 2048 pressure sensitive pen
  • Wireless transmission, free share by QR code
  • Cinema-level surround speaker with extreme audio visual enjoyment
  • Built-in 8.0M HD Cam for remote video conference and teaching (option)
  • Powerful built-in MIC to improve communication (option)

  • Model

    TS65DW

    TS75DW

    TS85DW

  • Panel Size (diagonal)

    65"75"85"

  • Overall Size

    1485.6*903*94.6 mm (L*H*T)1725*1042.6*109.6 mm (L*H*T)1961*1183.5*125.7 mm (L*H*T)

  • Packing Size

    1600*1025*215 mm1870*1150*220 mm2110*1315*240 mm

  • G.W./N.W

    50/41 KG69.7/58.6 KG110/92.7 KG

  • Display Area

    1428.48 (H)*803.52 (V)1650.24 (H)*928.26 (V)1876.2 (H)*1057 (V)

  • Dot Pitch

    0.124 mm*0.372 mm0.4298 mm*0.4298 mm0.4298 mm*0.4298 mm

  • Working Consumption

    ≤220W≤300W≤350W

  • Display Color

    8 bit/1.07 Billion

  • Chips

    RTD2861R cortex-A53*4

  • Storage

    2G + 16G (RAM)

  • Resolution

    3840*2160

  • Power Input

    100V-240V 50/60Hz

  • Lifespan

    ≥50000h

  • Surface

    4mm anti-glare tempered glass

  • Brightness

    ≥350 cd/m2

  • Contract Ratio

    5000:1

  • Backlight Type

    LED

  • Touch Technology

    IR

  • Touch Points

    20 touch point

  • OPS Port

    42mm standard 80Pin port

  • Wall Mount Bracket

    B75 bracketB85 bracket

  • OPS PC

    optional

  • Front Interface

    USB 3.0*2, P/W Switch

  • Back Interface

    RJ 45, USB*2, USB 3.0*1, TOUCH USB*1, COAXIAL*1, VGA*1, TFCARD, Earphone, 232*1, PC-RGB Audio

  • Android System

    Android 7.1, memory 16G, RTD2861R chip, 2G RAM

  • Multimedia Format

    Video: H.264, VP8, RV, WMV, AVS, H.263, MPEG4, AC3, YouTube; Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP; Image: JPG, BMP, PNG, etc.

  • Speaker

    25W*2 (forward)
