INTECH Interactive Flat Panel HH

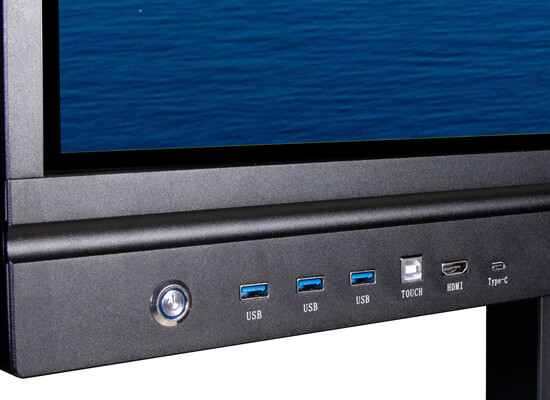

  • Brand new front ports with HDMI, USB, Type-c
  • Infrared 20 points touch
  • 12mm ultra-slim frame
  • Dual OS: Windows + Android OS
  • 4K UHD full screen
  • Wireless transmission plus free share by QR code
  • Magnetic infrared pen
Features Specifications Dimensions Video
  • Brand new front ports with HDMI, USB, Type-c
  • Infrared 20 points touch supporting multi-users write on the screen simultaneously
  • 12mm ultra-slim frame
  • Dual OS: Windows + Android OS
  • 4K Ultra HD full screen for superfine visual experience
  • Wireless transmission plus free share by QR code
  • Front magnetic pen slot to stick stylus pen within easy reach.

  • Model

    TS-65HH

    TS-75HH

    TS-86HH

    TS-98HH

  • Technical

  • Panel Size (diagonal)

    65"75"86"98"

  • Overall Size (mm)

    1479.9*923.6*106.11699.2*1038.1*106.51946*1181.8*113.152227.4*1345.8*122

  • Packing Size (mm)

    1600*1025*2151870*1150*2202110*1315*2402500*1630*440

  • G.W/N.W

    52/43 KG±1.5KG69/58 KG±1.5KG110/92.7 KG±1.5KG197/139 KG±1.5KG

  • Screen

  • Display Area (mm)

    1428.48 (H)*803.52 (V)1650.24 (H)*928.26 (V)1872 (H)*1053 (V)2158.85 (H)*1214.35 (V)

  • Contrast Ratio

    10000:1

  • Dot Pitch

    0.124*0.372 mm (H*V)0.4298*0.4298 mm (H*V)0.4875*0.48758 mm (H*V)0.5622*0.5622 mm (H*V)

  • Screen Manufacturer

    TCL CSOT

  • Backlight Type

    D-LED

  • Resolution

    3840*2160

  • Brightness

    550cd/m²

  • Response Time

    6ms

  • Refresh Rate

    60 Hz

  • View Angle

    178°(H) / 178°(V)

  • Saturation (x% NTSC)

    72%

  • Colors

    1.07B(8bit)

  • Screen Lifespan

    50,000 hrs

  • Touch

  • Touch Technology

    infrared technology

  • Touch Points

    20 points touch

  • Surface

    4mm tempered glass

  • Response Time

    ≤6ms

  • OS

  • Android 8.0, MSD8386 chip, CA53*2+CA73*2 1.5 GHz, Quad-core, G51MP2, RAM: 3GB DDR4, ROM: 32GB Standard

  • I/O Ports

  • Standard Ports

    LAN*2, VGA IN*1, PC-AUDIO IN*1, YPBPR*1, AV IN*1, AV OUT*1, Earphone OUT*1, RF-IN*1, SPDIF*1, HDMI IN*2, Touch*1, RS-232*1, USB2.0*2(optional), HDMI OUT*1(optional)

  • Optional Ports

    LAN*2, VGA IN*1, PC-AUDIO IN*1, YPBPR*1, AV IN*1, AV OUT*1, Earphone OUT*1, RF-IN*1, SPDIF*1, HDMI IN*3(1 front), Touch*2(1 front), Type-c*1(front), RS-232*1, USB2.0*5(3 front dual-channel USB2.0)

  • Power

  • Input Voltage

    100 V ~ 240 V/AC, 50/60 Hz

  • OPS Power Input

    19V(DC)/5A

  • Max Consumption

    ≤220W≤300W≤350W≤450W

  • Standby Consumption

    <0.5W

  • Power Input Port (AC)

    *1

  • TV System

  • ATV

    PAL,SECAM

  • DTV

    DTMB

  • Channel

    200

  • Speaker

    8Ω/20W*2

  • Environment

  • Working Temperature

    0℃ ~ 40℃

  • Storage Temperature

    -10℃ ~ 60℃

  • Working Humidity

    20% ~ 80%

  • Storage Humidity

    10% ~ 60%
